PTFE EVAPORATION DISHES

Our PTFE / Teflon Evaporation Dishes are used to aid in the coating process for silicon disks (wafers).

Part NoProduct NameOustide Dimensions (Handle)Inside Dimensions
SM3ED1 3” Evaporation Dish with Spout 3.15 in x 3.45 in x 1.182.90 in x 1.06 in

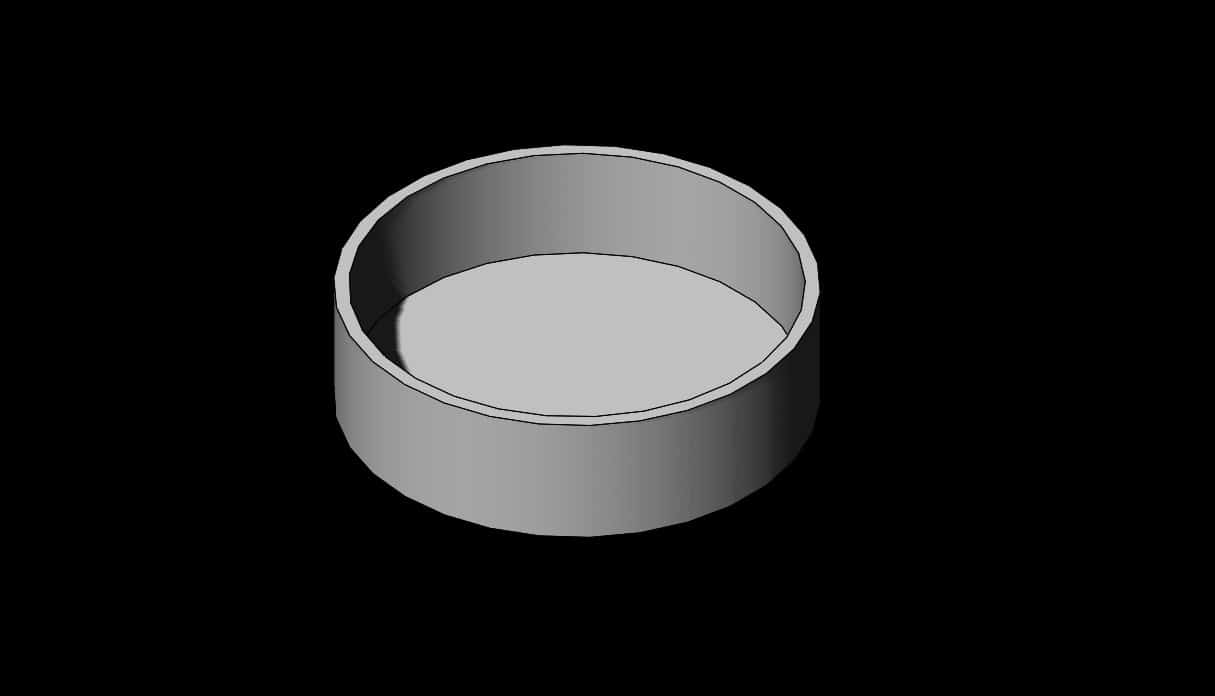

SM8ED1 8” Evaporation Dish without Spout8 in x 2.25 in7.5 in x 2 in

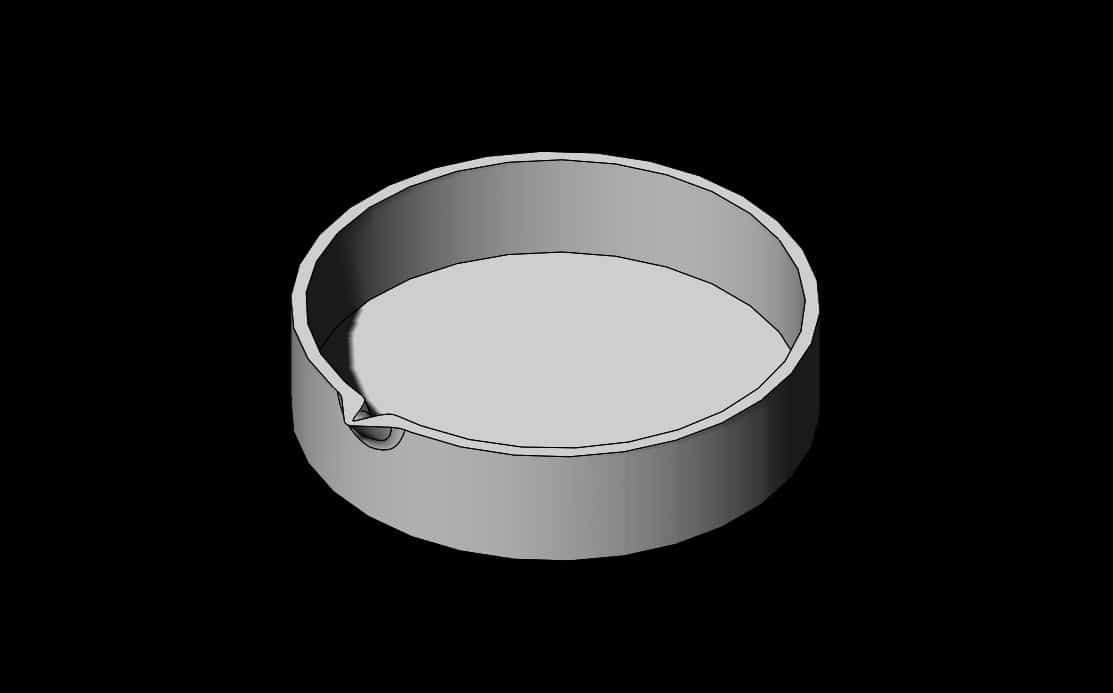

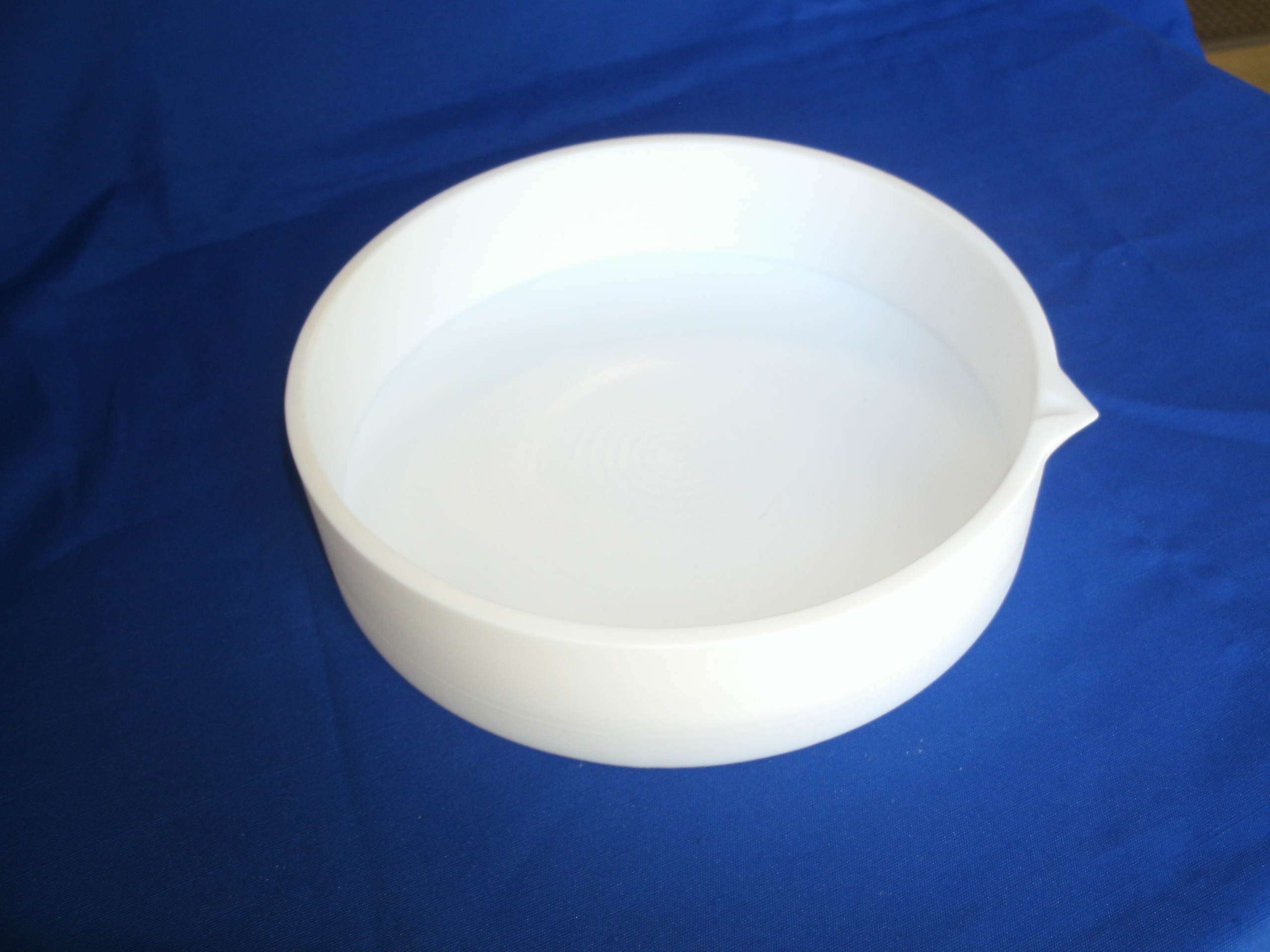

SM8ED2 8” Evaporation Dish with Spout 8.31 in x 3.79 in x 2 in7.84 in x 1.77 in
SM9ED1 9” Evaporation Dish without Spout 9 in X 5 in 7.87 in x 3.94 in
SM10ED1 10” Evaporation Dish without Spout 10.31 in X 10.79 in X 2 in 9.84 in x 1.77 in
